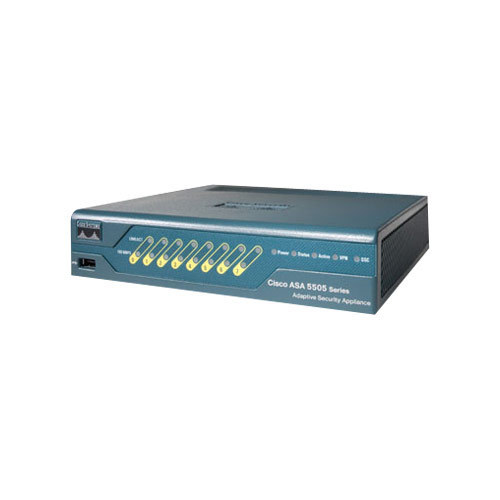

Cisco ASA 5500 Series Adaptive Security Appliances ASA5510-DC-K8 is easy-to-deploy solutions that integrate world-class firewall, Unified Communications (voice/video) security, SSL and IPsec VPN, intrusion prevention (IPS), and content security services in a flexible, modular product family.
Cisco ASA 5500 Series Adaptive Security Appliances ASA5510-DC-K8 is easy-to-deploy solutions that integrate world-class firewall, Unified Communications (voice/video) security, SSL and IPsec VPN, intrusion prevention (IPS), and content security services in a flexible, modular product family. Designed as a key component of the Cisco Self-Defending Network, the Cisco ASA 5500 Series provides intelligent threat defense and secure communications services that stop attacks before they impact business continuity. Designed to protect networks of all sizes, the Cisco ASA 5500 Series enables organizations to lower their overall deployment and operations costs while delivering comprehensive multilayer security.
The Cisco ASA 5500 Series helps organizations to balance security with productivity. It combines the industry’s most deployed stateful inspection firewall with comprehensive next-generation network security services, including:
– Visibility and granular control of applications and micro-applications- , with behavior-based controls
– Robust security
– Advanced threat protection with a comprehensive, highly effective intrusion prevention system (IPS)
– Highly secure remote access
– Protection from botnets
– Proactive, near-real-time protection against Internet threats
We are not only looking to sell you only one time we look to build long business relation with you.
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
ASA5520-DC-K8Datasheet | |
Manufacturer | Cisco |
Manufacturer Part # | ASA5510-DC-K8 |
Product Description | Cisco ASA 5510 Firewall Edition - Security appliance - 0 / 1 - Fast Ethernet,Gigabit Ethernet - DC power - 1U - rack-mountable |
Device Type | Security appliance |
Enclosure Type | Rack-mountable - 1U |
Network / Transport Protocol | IPSec |
General | |
Height (Rack Units) | 1U |
Installed Modules Qty (Max) | 0 ( 1 ) |
Approximate Width | 17.5 in |
Approximate Depth | 13.2 in |
Approximate Height | 1.7 in |
Approximate Weight | 20.1 lbs |
Processor / Memory / Storage | |
RAM Installed ( Max ) | 2 GB |
Flash Memory Installed (Max) | 256 MB flash |
Networking | |
Form Factor | Rack-mountable |
Connectivity Technology | Wired |
Data Link Protocol | Fast Ethernet, Gigabit Ethernet |
Performance | Firewall throughput : 450 MbpsVPN throughput : 225 MbpsConnection rate : 9000 sessions per second |
Capacity | Concurrent sessions : 280000IPSec VPN peers : 750SSL VPN peers : 2Virtual interfaces (VLANs) : 100 |
Features | Firewall protection, VPN support, load balancing, VLAN support |
Encryption Algorithm | DES |
Expansion Slot(s) | 1 (total) / 1 (free) x expansion slot1 memory |
Expansion / Connectivity | |
Interfaces | 1 x network - Ethernet 10Base-T/100Base-TX - RJ-451 x management - console - RJ-452 x Hi-Speed USB - 4 pin USB Type A1 x management - auxiliary - RJ-454 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 |
Miscellaneous | |
Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2,UL 1950, VCCI Class A ITE, IEC 60950, EN 61000-3-3, CSA 22.2 No. 950, EN 55022 Class A, AS/NZS 3260, AS/NZ 3548 Class A, FCC Part 15 |
Power | |
Power Device | Power supply - internal |
Voltage Required | DC 48 V |
Power Provided | 190 Watt |
Environmental Parameters | |
Min Operating Temperature | 32°F |
Max Operating Temperature | 104°F |
Humidity Range Operating | 5 - 95% |
The Cisco ASA 5510 Adaptive Security Appliance delivers advanced security and networking services for small and medium-sized businesses and enterprise remote/branch offices in an easy-to-deploy, cost-effective appliance. These services can be easily managed and monitored by the integrated Cisco ASDM application, thus reducing the overall deployment and operations costs associated with providing this high level of security. The Cisco ASA 5510 Adaptive Security Appliance provides high-performance firewall and VPN services and five integrated 10/100 Fast Ethernet interfaces. It optionally provides high-performance intrusion prevention and worm mitigation services through the AIP SSM, or comprehensive malware protection services through the CSC SSM. This unique combination of services on a single platform makes the Cisco ASA 5510 an excellent choice for businesses requiring a cost-effective, extensible, DMZ-enabled security solution.
The Cisco ASA 5500 and ASA 5500-X Series Next-Generation Firewalls were designed with this in mind. They are available in a wide range of sizes and performance levels to fit your network, budget, and evolving security needs. And they offer the same proven level of security that protects some of the largest networks at some of the most security conscious companies in the world.
As business needs grow, customers can install a Security Plus license, upgrading two of the Cisco ASA 5510 Adaptive Security Appliance interfaces to Gigabit Ethernet and enabling integration into switched network environments through VLAN support. This upgrade license maximizes business continuity by enabling Active/Active and Active/Standby high-availability services. Using the optional security context capabilities of the Cisco ASA 5510 Adaptive Security Appliance, businesses can deploy up to five virtual firewalls within an appliance to enable compartmentalized control of security policies on a departmental level. This virtualization strengthens security and reduces overall management and support costs while consolidating multiple security devices into a single appliance.
Businesses can extend their SSL and IPsec VPN capacity to support a larger number of mobile workers, remote sites, and business partners. Up to 250 AnyConnect and/or clientless VPN peers can be supported on each Cisco ASA 5510 by installing an Essential or a Premium AnyConnect VPN license; up to 250 IPsec VPN peers are supported on the base platform.
