Original price was: $2,995.00.$1,257.00Current price is: $1,257.00.

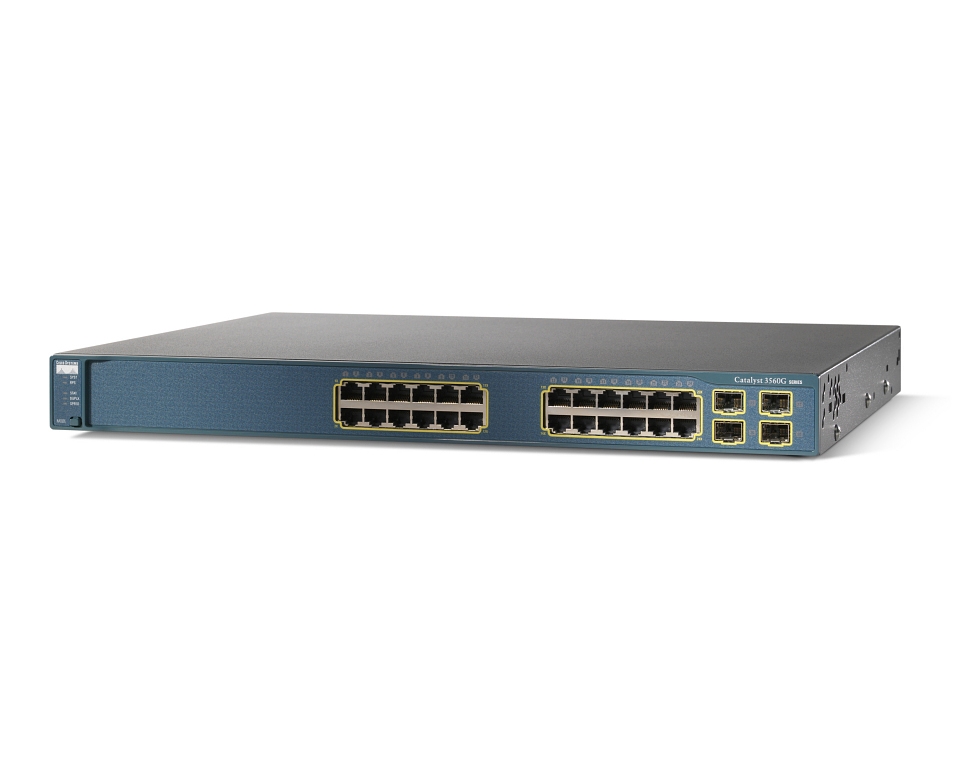

Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.
Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.
3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.
– 24 Ethernet 10/100 ports and 2 SFP-based Gigabit Ethernet ports
– 1RU fixed-configuration, multilayer switch
– Enterprise-class intelligent services delivered to the network edge
– IP Base software feature set (IPB)
We are not only looking to sell you only one time we look to build long business relation with you.
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
Specifications | |
Type | Fixed |
Topology | Ethernet (10/100BaseTX)Ethernet (10/100/1000 Ethernet PortsBaseT)Gigabit Ethernet (SFP) |
Maximum Port density | 24 10/100 ports |
Uplinks | 2 SFP ports |
Modular/Expansion Slots | n/a |
Architecture | Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled |
Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
Dimensions | 1.73 x 17.5 x 11.81 in. |
DRAM | 131 MB |
High Availability/Resilliency | |
Hardware Redundancy | External Redundant Power Supply |
High Availability/Resilliency | PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP |
Management | |
Management features | SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
Scalability | |
WAN Interface Support | n/a |
Throughput | 6.6 Mpps |
Backplane Capacity | 8.8 Gbps |
Number of VLANs | 4k, 1024 |
Cisco Catalyst 3560-E Series is an enterprise-class line of standalone access and
aggregation switches that facilitate the deployment of secure converged applications while maximizing
investment protection for evolving network and application requirements. Combining 10/100/1000 and
Power over Ethernet (PoE) configurations with 10 Gigabit Ethernet uplinks, the Cisco Catalyst 3560-E
Series access switches enhance worker productivity by enabling applications such as IP telephony,
wireless, and video. Cisco Catalyst 3560-E Series aggregation switches deliver secure nonstop unified
network services and versatile connectivity in a one rack-unit (1-RU) form factor for space and power
constrained environments, enabling businesses to reduce total cost of ownership while maximizing
investment protection.
Cisco Catalyst 3560-E Series Primary Features
– Cisco TwinGig converter module for migrating uplinks from Gigabit Ethernet to 10 Gigabit Ethernet
– Cisco EnergyWise for greenhouse gas emissions and operational cost optimization by measuring, reporting,
and reducing energy consumption across the entire corporate infrastructure, well beyond the scope of IT.
– PoE configurations with 15.4W of PoE on all 48 ports
– Enhanced PoE supporting up to 20W of PoE per port
– Industry first portfolio to scale beyond 15.4W per port delivering maximum solution simplicity for 802.11n
access point deployments
– Access switch models have modular fan and power supply with externally available backup
– Dual redundant modular power supplies and fans for Cisco Catalyst 3560E-12D and Catalyst 3560E-12SD
aggregation switches for nonstop operation
– Multicast routing, IPv6 routing, and access control list (ACL) in hardware
– Out-of-band Ethernet management port along with RS-232 console port
