Original price was: $5,494.00.$1,305.00Current price is: $1,305.00.

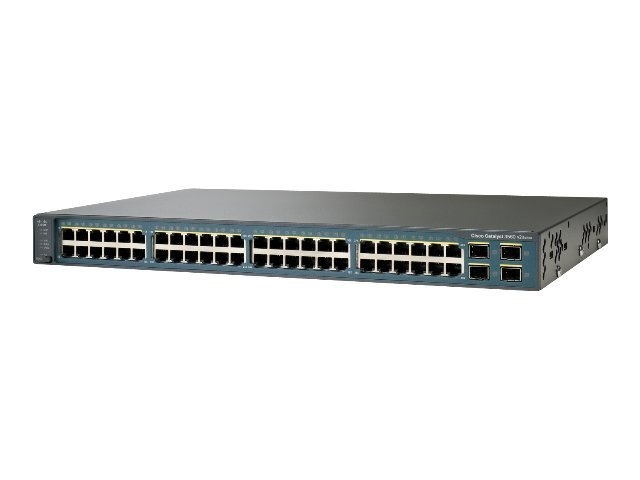

Cisco Catalyst 3560 V2 Series switch WS-C3560V2-48TS-S is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
Cisco Catalyst 3560 V2 Series switch WS-C3560V2-48TS-S is the next-generation energy-efficient Layer 3 fast Ethernet switches. This 3560V2 switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560V2 Series switch consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
– 48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet ports
– 1RU fixed-configuration, multilayer switch
– IPv6
– IP Base software feature set
We are not only looking to sell you only one time we look to build long business relation with you.
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
Management features | |
Switch layer | L3 |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Switch type | Managed |
Multicast support | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 48 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
SFP ports quantity | 2 |
SFP+ ports quantity | 2 |
Networking | |
Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
Full duplex | Yes |
10G support | Yes |
Spanning tree protocol | Yes |
DHCP server | Yes |
IGMP snooping | Yes |
VLAN support | Yes |
Auto MDI/MDI-X | Yes |
Link aggregation | Yes |
IP routing | Yes |
Rate limiting | Yes |
Data transmission | |
Switching capacity | 176 Gbit/s |
MAC address table | 32000 entries |
Number of VLANs | 4000 |
Jumbo frames support | Yes |
Security | |
Access Control List (ACL) | Yes |
SSH/SSL support | Yes |
Design | |
Rack mounting | Yes |
Colour of product | Black |
Form factor | 1U |
LED indicators | Yes |
Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM |
Performance | |
Stackable | Yes |
Flash memory | 2000 MB |
Memory type | DRAM |
Internal memory | 4096 MB |
Power | |
AC input voltage | 100-240 V |
AC input frequency | 50/60 Hz |
Power consumption (typical) | 89.40 W |
Number of power supply units | 1 |
Redundant power supply (RPS) support | Yes |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) support | No |
Operational conditions | |
Operating temperature (T-T) | -5 - 50 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 5 - 96 % |
Operating altitude | 0 - 1500 m |
Non-operating altitude | 0 - 5000 m |
Weight & dimensions | |
Width | 445 mm |
Depth | 448 mm |
Height | 44 mm |
Weight | 7210 g |
Other features | |
Bandwidth | 160 Gbit/s |
The Cisco Catalyst 3560 v2 Series is the next-generation energy-efficient Layer 3 fast Ethernet
switches. This new series of switches supports Cisco EnergyWise technology, which enables companies to measure
and manage power consumption of network infrastructure and network-attached devices, thereby reducing their
energy costs and their carbon footprint. The Cisco Catalyst 3560 v2 Series consumes less power than its
predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it
maximizes productivity and investment protection by enabling a unified network for data, voice, and video.
Cisco Catalyst 3560 v2 Series Highlights
– Lower power consumption than its predecessors
– Backward compatible – uses the same Cisco IOS?
Software image as the 3560 series and has the same
feature set
– Full EnergyWise support to monitor energy consumption of network infrastructure and implement energy
saving programs to reduce energy costs
– Compatible with Cisco Redundant Power System (RPS) 2300
– All units have a uniform depth of 11.9 inches for better cable management
– Preconfigurable with the Cisco IOS Software release at the time of ordering
– IPv6 routing included in the IP Services feature set
– DC powered stand-alone model
