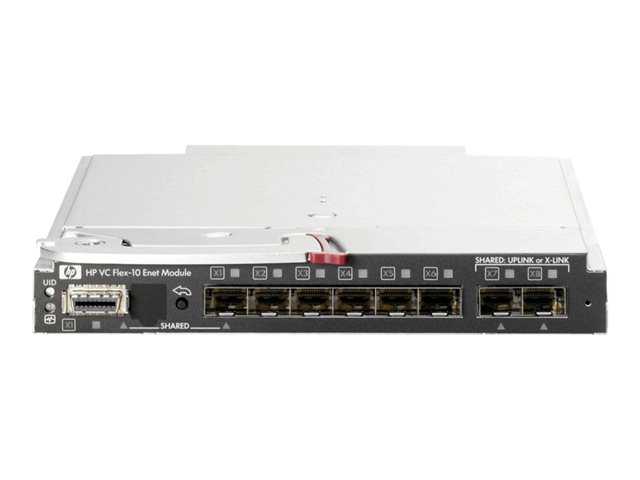

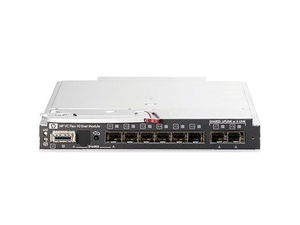

HP BLc VC Flex-10 Enet Module Opt PN 455880-B21

$10,940.00

HP BLc VC Flex-10 Enet Module Opt (PN : 455880-B21)

Simplify and make your data center change-ready. The HP Virtual Connect Flex-10 10Gb Ethernet Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge by dividing each 10 Gb network connection into four independent physical FlexNIC server connections. Each FlexNIC can be configured from 100 Mb up to 10 Gb, allowing just the right amount of network bandwidth based on your application needs.

SKU: HP-03-BL Category: Tags: , , , , , , , , , , ,

Product Description

HP BLc VC Flex-10 Enet Module Opt PN 455880-B21

Simplify and make your data center change-ready. The HP Virtual Connect Flex-10 10Gb Ethernet Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge by dividing each 10 Gb network connection into four independent physical FlexNIC server connections. Each FlexNIC can be configured from 100 Mb up to 10 Gb, allowing just the right amount of network bandwidth based on your application needs. The Virtual Connect Flex-10 10Gb Ethernet Module offers a new class of blade interconnect that allows you to move, add, and change the servers inside your BladeSystem transparently to external network connections. With Virtual Connect, you can reduce costs and simplify connections to LANs and SANs, consolidate and precisely control your network connections, and enable administrators to add, replace and recover server resources on-the-fly.

Important Information

We are not only looking to sell you only one time we look to build long business relation with you.

Warranty & Support

We offer manufacture warranty plus our ICT warranty.

If you need any technical assistant, our expert technicians are always available to help you without any additional cost.

Contact us now and let our team help you.

Networking
Ethernet interface typeGigabit
Ethernet LAN data rates10, 100, 1000  Mbit/s
Optical fiber
Fiber optic connectorXFP
Data transmission
Data transfer rate10  Gbit/s
Ports & interfaces
Fiber ports quantity8
Performance
CompatibilityHP ProLiant
Port speed rating10 Gb
Network cards16 x 10Gb downlinks midplane2 x 10Gb cross connect1 x 10Gb copper uplinks CX-48 x 10Gb SR, LR, or LRM fiber uplinks SFP+1 management USB port1 internal interface to c-Class Onboard Administrator Module
Management features
Management platformSNMP
Weight & dimensions
Weight2000  g
Dimensions (WxDxH)270.00 x 352.55 x 120.65  mm
Certificates
Energy Star certifiedNo
Other features
Blade types supportedHP ProLiant; Integrity Servers
Size1.1  "
Supported protocolsEthernet
Blades per enclosure (maximum)8
Management platformEmbedded Virtual Connect Manager for provisioning, connection management and network troubleshooting; Simple and intuitive Graphical User Interface (GUI) and Setup Wizards; Embedded SNMP v1, v2; Command Line Interface supporting all functions plus network troubleshooting; server port mirroring on any uplink; Manage up to 4 enclosures from one console
MultimediaOptional HP SFP+ SR, LR, and LRM modules and SFP+ Copper cables in 0.5m, 1m, 3m, and 7m lengths

HP Virtual Connect Flex-10 10Gb Ethernet Modules for c-Class BladeSystem simplify networks by reducing cables without adding switches to manage. They provide 4:1 consolidation of interconnect equipment: Each VC Flex-10 module can replace up to four Ethernet switches supporting data and iSCSI storage traffic. They reduce networking TCO at the server edge: Save up to 60% of infrastructure costs and reduced annual power and cooling costs. Virtual Connect simplifies connection management: Wire-once, then add, move and change network connections to 1000’s of servers in minutes vs. days from one console without affecting your LAN and SAN. HP Virtual Connect Flex-10 10Gb Ethernet Modules with firmware v3.30 and greater improve network visibility for troubleshooting from a command line interface with secure access for network teams via TACACS+ or RADIUS.

Icon

455880-B21 datasheet

1 file(s) 761.74 KB
Download
