HP BLc VC Flex-10/10D Module Opt PN 638526-B21

$12,361.00

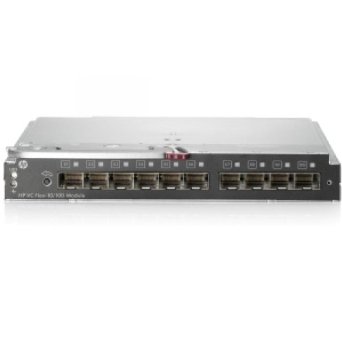

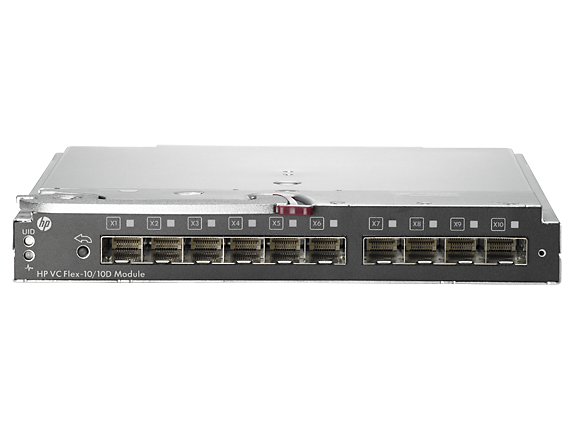

HP BLc VC Flex-10/10D Module Opt (PN : 638526-B21)

Simplify and make your data center change-ready. The HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge.

Product Description

HP BLc VC Flex-10/10D Module Opt PN 638526-B21

Simplify and make your data center change-ready. The HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem allows administrators to fine-tune network bandwidth at the server edge.

VC Flex-10/10D modules converge traffic over high speed 10Gb connections to servers with HP FlexFabric Adapters. Each module provides four adjustable connections (three data and one storage, or four data) to each 10Gb server port.

Eliminate up to 95% of network sprawl at the server edge with one device that converges traffic inside enclosures and directly connects to an upstream FCoE bridge. Avoid the confusion of traditional and other converged network solutions by eliminating the need for multiple Ethernet and Fibre Channel switches, extension modules, cables and software licenses.

Virtual Connect wire-once connection management is built-in, enabling server adds, moves, and replacement in minutes instead of days.

Important Information

We are not only looking to sell you only one time we look to build long business relation with you.

Warranty & Support

We offer manufacture warranty plus our ICT warranty.

If you need any technical assistant, our expert technicians are always available to help you without any additional cost.

Contact us now and let our team help you.

Technical details
Supported protocols802.1AB, 802.1D, 802.1Q, IEEE 802.2,802.3ad, FC-BB5, sflow
Weight2 kg  g
Weight2 kg  g
MultimediaSFP+ SR, LR, LRM SFP SX, RJ-45SFP + Copper
Management platformEmbedded Virtual Connect Manager for provisioning, connection management and network troubleshooting: Simple and intuitive Graphical User Interface (GUI) and Setup Wizards; Embedded SNMP v1, v2; Command Line Interface supporting all functions plus network troubleshooting; server port mirroring on any uplink; Manage up to 4 enclosures from one console
Blade types supportedC7000, C3000
Dimensions (WxDxH)270 x 352.6 x 120.7 mm  mm
MultimediaSFP+ SR, LR, LRM SFP SX, RJ-45SFP + Copper
Dimensions (WxDxH)270 x 352.6 x 120.7 mm  mm
Technical featuresBuffer credits

HP Virtual Connect Flex-10/10D Module for c-Class BladeSystem simplifies networks by reducing cables without adding switches to manage

Allows you to wire once, then add, move and change network connections to thousands of servers in minutes instead of days or weeks — from one console without affecting your LAN and SAN

Each module has thirty ports for a total effective full-duplex bandwidth of 600Gb, and ten dedicated SFP+ uplink ports, which can be 1 or 10GbE

Reduces your network overhead costs by wiring once and making changes on the fly without additional network administrative support. Unlike other network virtualization offerings, Virtual Connect does not require manual changes to network connections each time a server is added or moved

Eliminates network sprawl at the server edge and saves up to 47% on upstream ToR switch cable connections
