HP Ethernet 1Gb 4-port 331T Adapter PN 647594-B21
$156.00

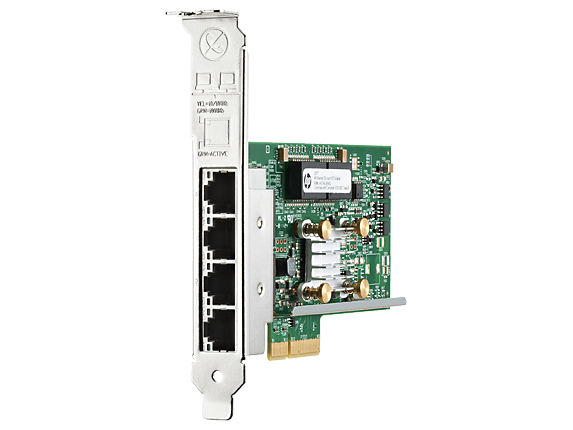

HP Ethernet 1Gb 4-port 331T Adapter (PN : 647594-B21)
The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption.
Product Description
HP Ethernet 1Gb 4-port 331T Adapter PN 647594-B21
The HP Ethernet 1Gb 4-Port 331T Adapter features the next generation of Ethernet integration, offering a single chip solution that reduces power requirements and optimizes I/O slot utilization. It delivers full line-rate performance across all ports with low power consumption.
The HP 331T is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 8Gb meets the needs of customers desiring high bandwidth.
The HP 331T supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.
Important Information
We are not only looking to sell you only one time we look to build long business relation with you.
Warranty & Support
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Connector(s) | RJ-45 |
| Bandwidth | |
| Data transfer rate | 1 Gbit/s |
| Bandwidth | 8 Gbit/s |
| Data transfer rate (max) | 2000 Mbit/s |
| Full duplex | Yes |
| Networking | |
| Chipset | Broadcom BCM5719 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Maximum operating distance | 100 m |
| Jumbo frames support | Yes |
| Wireless LAN features | |
| Wi-Fi | No |
| Antenna | |
| Antenna | No |
| Power | |
| Power consumption (typical) | 4.3 W |
| Design | |
| Colour of product | Green, Grey |
| Performance | |
| Compatible memory cards | No |
| Weight & dimensions | |
| Width | 68.6 mm |
| Depth | 132.1 mm |
| Certificates | |
| Certification | FCC Part 15 Class BICES=--3, Issue 4VCCI V3 (2010.04) Class BKN22 ClassB, KN24EN55022:2006+A12007 class BEN55024:1998+A1:2011+A2; EN61000-3-2:2006, EN61000-3-3:2008EN55022:2006 + A1:2007 Class BUL/cULCEEN 60590 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -65 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90 % |
| Storage relative humidity (H-H) | 5 - 95 % |
| Other features | |
| Cable type | Cat5 |
| Compatible operating systems | Windows Server 2008 (32/64), Enterprise, Web, Embedded, R2Microsoft Windows HPC Server 2008Microsoft Windows 2008 Standard (32/x64)Microsoft Windows 2008 Enterprise (32/x64)Microsoft Windows Small Business Server 2011 (SBS V7)Microsoft Windows Small Business Server 2011 EssentialsRHEL 5.7 x86/ AMD 64 & EM 64TRHEL 6.1 x86/ AMD 64 & EM 64TSLES10: x86 / AMD 64 & EM 64TSLES 11: x86 / AMD 64 & EM64TSolaris 10VMWare vSphere 4.1/5.0CitrixHyperV (Windows 2008 32 and 64) |
Features
The HP 331T is designed for maximum throughput and high port density.
An aggregate, full duplex transfer rate of 8 Gb/s per adapter delivers outstanding network performance that improves response time and removes bottlenecks
Comprehensive stateless offloads optimize host efficiency and VM density by leaving host CPU available for other duties
Virtualization support for VMware NetQueue and Microsoft VMQ help meet the performance demands of consolidated virtual workloads
Support for MSI/MSI-X provides performance benefits for multi-core servers by load balancing interrupts between CPUs/cores
Support for Energy Efficient Ethernet (EEE) reduces operating expenses
