HP Ethernet 1Gb 4P 366M Adptr PN 615729-B21
$275.00
HP Ethernet 1Gb 4P 366M Adptr (PN : 615729-B21)

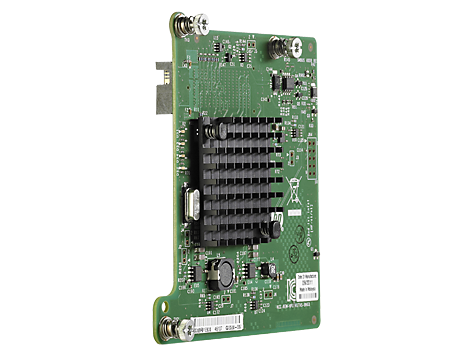

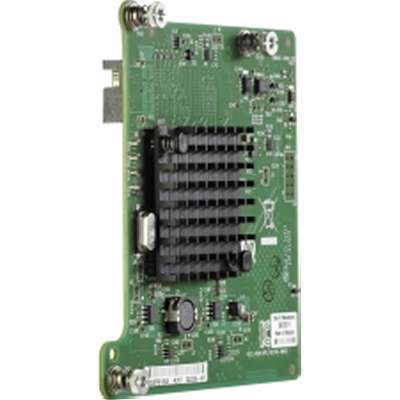

The HP 366M is a PCIe 2.1 quad-port 1Gb Ethernet mezzanine network adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the bridgeless Intel? I350 controller, it is the follow-on adapter to the HP NC364m.
Product Description
HP Ethernet 1Gb 4P 366M Adptr PN 615729-B21
The HP 366M is a PCIe 2.1 quad-port 1Gb Ethernet mezzanine network adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the bridgeless Intel? I350 controller, it is the follow-on adapter to the HP NC364m.
The total aggregate throughput of 4Gbps meets the needs of customers wanting high bandwidth but not yet ready to move to 10 Gigabit Ethernet. Support for VMware NetQueue, Microsoft VMQ, and Intel VMDq meets the performance demands of consolidated virtual workloads.
Other features supported on the HP 366M include RSS, PXE, checksum offload, VLAN, jumbo frames, iSCSI acceleration and iSCSI remote boot.
Important Information
We are not only looking to sell you only one time we look to build long business relation with you.
Warranty & Support
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI-E |
| Interface | Ethernet |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Bandwidth | |
| Data transfer rate | 2 Gbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| Networking | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Power consumption (typical) | 3 W |
| Other features | |
| Compliance industry standards | 1588, 802.1as |
First quad-port 1GbE mezzanine adapter for HP BladeSystem Gen8 servers offers network port density
New bridgeless quad-port design with PCIe 2.1 support offers greater throughput for I/O intensive applications like virtualization, firewall and other security, network segmentation, and other bandwidth hungry applications
Total aggregate throughput of 8 Gbps full duplex meets the needs for customers who need high bandwidth but are not yet ready to move to 10 Gigabit Ethernet
Intel? Integrated I/O with Data Direct I/O reduces system power, increases I/O performance, and reduces latency, while DMA Coalescing enables the adapter to remain in a low power state for a long time
Virtualization is optimized by support for VMware NetQueue, Microsoft VMQ, Intel VMDq, and VLAN support with eight queues per port and port partitioning
Advanced features like PXE boot, jumbo frames, VLAN support, and RSS increase network performance
