HP NC112T PCI Express Gigabit Server Adapter PN 503746-B21
$40.00

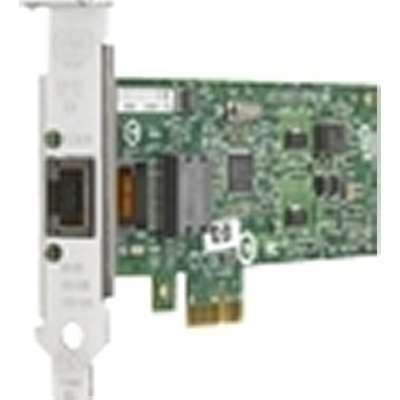

HP NC112T PCI Express Gigabit Server Adapter (PN : 503746-B21)
The HP NC112T is a low-priced Gigabit Ethernet server adapter that features single-port copper single lane (x1) PCI Express capability with 32KB onboard memory that provides 10/100/1000T auto-negotiated speed and duplex
Product Description
HP NC112T PCI Express Gigabit Server Adapter PN 503746-B21
The HP NC112T is a low-priced Gigabit Ethernet server adapter that features single-port copper single lane (x1) PCI Express capability with 32KB onboard memory that provides 10/100/1000T auto-negotiated speed and duplex. It makes use of the Intel 82574L silicon and is suitable for both standard and low profile slots.
Important Information
We are not only looking to sell you only one time we look to build long business relation with you.
Warranty & Support
We offer manufacture warranty plus our ICT warranty.
If you need any technical assistant, our expert technicians are always available to help you without any additional cost.
Contact us now and let our team help you.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI |
| Interface | Ethernet |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Bandwidth | |
| Data transfer rate | 1 Gbit/s |
| Data transfer rate (max) | 1000 Mbit/s |
| Full duplex | Yes |
| Networking | |
| Chipset | Intel 82574L |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Power | |
| Input voltage | 3.3 V |
| Power consumption | 575 mA |
| USB powered | No |
| Design | |
| Colour of product | Multi |
| LED indicators | Yes |
| Performance | |
| Plug and Play | Yes |
| Weight & dimensions | |
| Width | 119.3 mm |
| Depth | 55.8 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 95 % |
| Storage relative humidity (H-H) | -5 - 95 % |
| Other features | |
| Compliance industry standards | FCC, VCCI, BSMI, CISPR 22, EN 55022, EN55024-1, ICES-003, MIC, ACA |
| Cable type | 5/5E/6 |
| Ports quantity | 1 |
| Compatible operating systems | Microsoft Windows Server 2008 (32-and 64-bit)Microsoft Windows Server 2003Microsoft Windows Server 2003 Web EditionMicrosoft Windows Server 2003 Small Business ServerMicrosoft certified miniport and teaming driversMicrosoft Windows 2003 Standard (32 and x64)Microsoft Windows 2003 Enterprise (32 and x64)Microsoft Windows Server 2008Microsoft Windows HPC Server 2008 |
| Cable connection | RJ45 |
| Link/Act LED | Yes |
| Power LED | Yes |
