Processor
Intel Xeon E5-2407 (4-core, 2.2 GHz, 10 MB, 80 watts)
Number of processors
1
The number of available processor cores
4
Shape (fully configured)
2U
Power type
A 460-watt hot-swap power supply
Expansion Slots
3

Memory (standard)
4GB
Memory slots
12 DIMM slots
Memory Type
PC3L-10600R (RDIMM)

Comes with hard drive
8 LFF SAS / SATA / SSD; actually available 8 LFF SATA / SAS; hard disk standard does not provide
Drive Type
Standard does not provide

Network Controller
A 1Gb 366i Ethernet adapter (4-port)
Storage Controller
A Smart Array B320i with 512M cache SAS controller

Dimensions (W x D x H)
44.55 x 74.94 x 8.74 ??
Weight
42.99 kg

Infrastructure Management
iLO Management Engine (standard), Insight Control (optional)

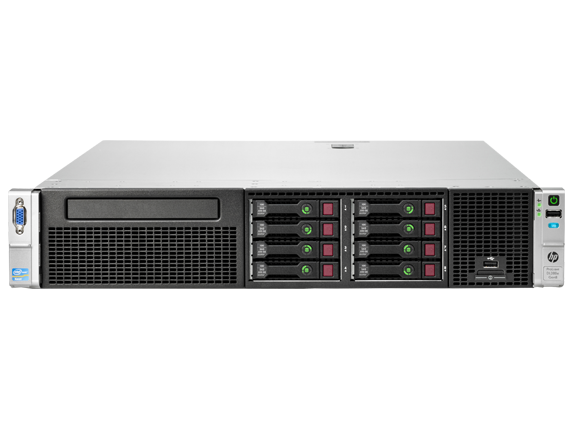

HP ProLiant DL388e Gen8 server offers the superior functionality and high-density storage in a 2U, 2 socket server

Various functions (such as management, networking, and maintainability) and different hard drive cage options, help applications meet their various needs (including the unique storage requirements). It also provides enterprise-class uptime and high manageability, and 2 socket Intel Xeon performance of HP Insight Control.

HP ProLiant DL388e Gen8 server supports HP iLO Management Engine, which is a comprehensive set of embedded management features to support the complete lifecycle of the server (from initial deployment to the operation and management, to service alerting and remote support). HP iLO Management Engine is supplied with all HP ProLiant Gen8 servers, which include: HP iLO, HP Intelligent Provisioning (formerly known as SmartStart), Hewlett-Packard agentless management, HP Active Health System and the HP Embedded Remote Support.

Intuitive management system can be configured to end tedious and time-consuming task

Intelligent configuration capabilities to take advantage of SmartStart, Smart Update Manager, and ProLiant Support Packs and other products to the latest features simple operation to enhance its performance, and put them on the system board, so you can for your use anytime, anywhere.

Agentless hardware monitoring and alerting capabilities with HP agentless management is built into the server hardware. Agentless, when the power cable and Ethernet cable connected to the server can be started.

HP Active Health System provides 24×7 health monitoring, 100% configuration change records, and the use of HP service and technical support obtained faster problem analysis skills. Using uniform diagnostic tools to almost 5 times faster problem analysis and secure data transfer to HP service and technical support.
Application, storage and I / O performance

With HP Smart memory, providing unmatched performance, quality and manageability advantages, higher than the industry standard memory. Supports RDIMM, UDIMM and LRDIMM, capacity up to 384GB, and the speed of 1600MHz when the capacity of 192GB. HP Intelligent memory than previous versions can provide up to 200% of the memory capacity.

Support HP SmartStorage, including PCIe 3.0, HP SmartDrives and HP FBWC nonvolatile cache array technology, and capacity of up to 2GB. Maximum support include as many as seven (27) 2.5-inch SFF or fourteen (14) 3.5-inch LFF SAS, SATA, SSD drives.
Smart Array supports dynamic and intelligent array configuration list. Dynamic Smart Array controller series includes B120i, it can provide up to up to six SATA drive support, and optional B320i provides basic support for up to eight SAS drives with optional 512-MB cache supports up to RAID 5.

For high performance, high efficiency and easy maintenance access and build

ProLiant DL388e Gen8 server configuration fully reflects the usual HP to help customers save energy, reduce costs purpose.

With new universal tool-assisted slide, can be quickly installed DL388e Gen8. With the quick release lever can quickly operate the server. Ambidextrous cable management bracket option for flexible wiring and excellent cable management, so that you can quickly access the server.

Pioneered 3D Sea of Sensors (part of HP’s unique cooling discovery service) can precisely control server direct cooling fan, fan to avoid unnecessary energy consumption.

Pioneered efficient HP Platinum Plus Common Slot Power (460W, 750W, 1200W) and the ultra-efficient HP Titanium Plus Common Slot Power (750W) can communicate with HP’s new generation of intelligent PDU, ensure redundant power supply into the redundant PDU .

Intel Xeon E5-2400v2 product family can automatically adjust power consumption and intelligently adjust server performance, providing higher performance and energy efficiency, in order to maximize efficiency and performance.
