Manufacturer VIVOTEK
Model CC8130
Application Internal
Resolution 1 MP
Image Sensor 1/4 “Progressive CMOS Sensor
Lens Type Prime
The brightness of the lens F1.8
Focal Length f: 1.3 mm
Viewing angle 180 (H) 100 ? (V)
Stop –
Day Night –
IR illuminators No
Range IR –
Minimum illumination 0.47 Lux, 50 IRE (Color)
Maximum video resolution 1280×800
Frames per second (fps) 30 fps @ 1280×800
Video Compression Dual-Codec (H.264 / MJPEG)
Number of streams 2
Technology WDR / View-DR –
Noise Reduction –
Power PoE
power consumption Max. 3.8W
Input / Output Digital –
Audio support Built-in microphone
Audio Compression G.711
Memory card support –
Degree of protection, anti-vandalism –
Dimensions 28 mm (D) x 50 mm (W) x 88 mm (H) (Body only) 35 mm (D) x 53 mm (W) x 118 mm (H) (With stand)
Operating temperature range 0 ? C to 40 ? C (32 ? F ~ 104 ? F)
Additional Features Compact Size, 180 ? Panoramic View Tilt Mount / Flat Mount Available
Warranty 24 months

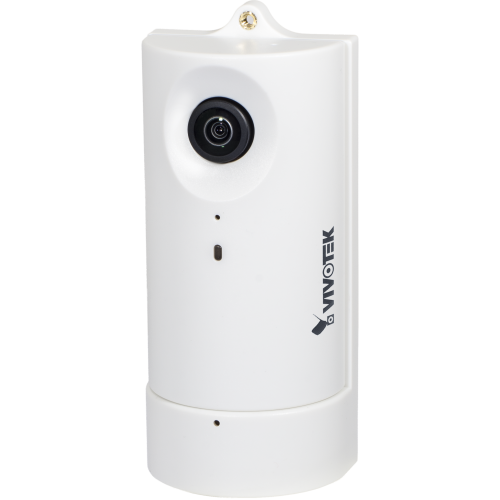

VIVOTEK CC8130 is an easy-to-use network camera designed specifically for safety-related applications in the home, office or small shop. The camera is closed stylish, compact design. Equipped with a 1-megapixel sensor allows you to watch video at a resolution of 1280 x 800 at 30 frames per second. The camera supports H.264 compression technology while reducing the file size and allowing you to preserve valuable bandwidth. The compression MJPEG video stream can also be transmitted in this format for other applications. streams can be individually configured to meet different constraints and thereby significantly reduce the consumption of bandwidth and disk space. Users can thus receive multiple streams simultaneously in different resolutions with different frame rates and image quality for viewing on different platforms. With this network camera, you can quickly and easily look after the home, office or shop, and all that is possible being away from home. The camera also features tamper detection, and a 32-channel recording software. With these features CC8132 is an ideal, simple solution for video surveillance.
