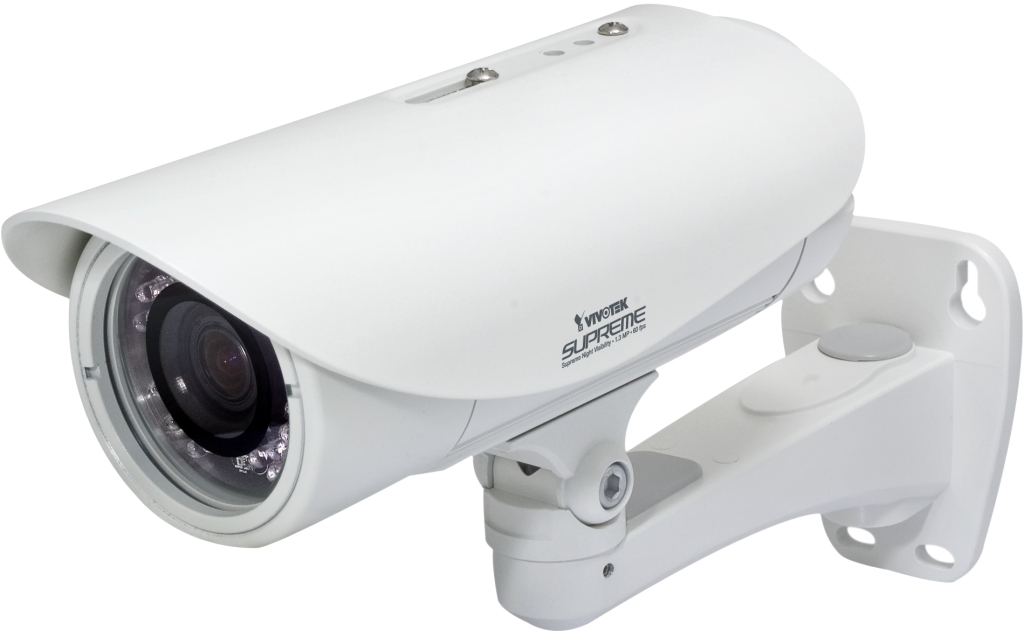

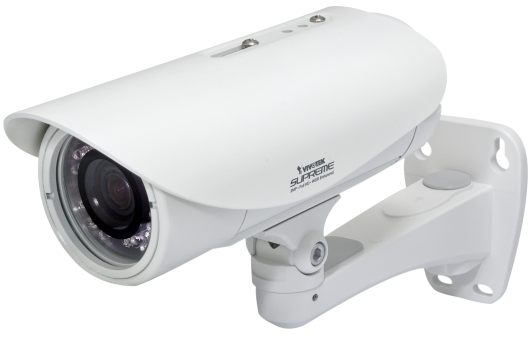

Manufacturer VIVOTEK
Model IP8362
Application External
Resolution 2 MP (FullHD)
Image Sensor 1 / 2.7 “CMOS Progressive
Lens Type Varifocal
The brightness of the lens F1.2 ~ F2.1
Focal Length f: 3 ~ 9 mm
Viewing angle 38 ? ~ 104 ? (H) of 22 ? ~ 71 ?
Stop DC-iris
Day Night Yes
IR illuminators Yes
IR range 20 m, the IR LED * 12
Minimum illumination 0.08 Lux @ F1.2 (Color) 0.001 Lux @ F1.2 (B / W)
Maximum video resolution 1920×1080 (2MP)
Frames per second (fps) 30 fps @ 1920×1080
Video Compression Triple-Codec (H.264 / MJPEG / MPEG-4)
Number of streams 4
Technology WDR / View-DR WDR Enhanced
Noise Reduction –
Power PoE / 12V DC / 24V AC
Power consumption Max. 9.6
Input / Output Digital 1/1
Audio support Bi-directional Audio
Audio Compression GSM-AMR, AAC, G.711
Memory card support MicroSD / SDHC Card Slot
Degree of protection, anti-vandalism IP67
Dimensions ? 70 mm x 186 mm
Operating temperature range -20 ? C ~ 50 ? C (-4 ? F ~ 122 ? F)
Additional Features Cable Management, EPTZ, Focus Assist
Warranty 36 months

IP8362 has advanced compression technology H.264 / MPEG-4 / MJPEG and offers very good image quality up to 30 fps. / Sec. Full HD 1080p. In addition, IP8362 offers a range of innovative technologies, including video cropping (Video Cropping), activation of adaptive stream (Activity Adaptive Streaming – increasing the number of frames when motion is detected), gigabyte Internet connection, giving the user maximum flexibility and performance bandwidth space.

To adapt to the constantly changing lighting conditions, IP8362 is equipped with a built-in filter and IR illuminators working in day / night. Housing degree of protection IP67chroni the camera body against rain and dust and ensures operation under extreme weather conditions. For complete installation and prevention against tampering and vandalism, IP8352 has a package handle that conceals all cabling.

The camera has many advanced solutions, such as tamper detection, 802.3af PoE, slot MicroSD / SDHC, visibility at night and 60 fps. / Sec. while maintaining the highest image quality.

IP8362 is the best choice for the most demanding applications external oversight, such as parking lots, entrances, residential communities, and many others.
