Product Specification

Network-module slots:

These slots can accommodate a standard network module, enhanced network module (NME), enhanced extended network module (NME-X), and high-density extension module (EVM-HD). The NME-X, when available, will have a wider form factor than the NME. You can combine two side-by-side NME slots to accommodate one double-wide network module (NMD) or when available, a double-wide enhanced extended network module (NME-XD).
• NM
• NME
• NME-X
• NMD
• NME-XD
• EVM-HD

Maximum number of network modules, NMEs, and NME-Xs supported 2
Maximum number of NMD/NME-XDs supported 1
Maximum number of EVM-HDs supported 1
Number of HWIC slots (These HWIC slots also support VICs, VWICs, and WICs.) 4
Number of fixed LAN ports (fixed RJ-45 port for 10/100/1000 connectivity) 2 Gigabit Ethernet (10/100/1000)
Number of fixed Small Form-Factor Pluggable (SFP) ports (for SFP Gigabit Ethernet connectivity) 1
Number of AIM slots (for optional AIMs for offloading compute-intensive features) 2
Number of PVDM slots (for optional PVDM2s) 4
Number of USB 1.1 ports (for future use with USB flash memory, security tokens for secure Cisco IOS Software configuration distribution, and off-platform storage of VPN credentials) 2
Embedded VPN (hardware-based VPN encryption acceleration) NO
Number of console ports (up to 115.2 kbps) 1
Number of auxiliary ports (up to 115.2 kbps) 1
Memory: External Compact Flash and internal double-data-rate (DDR) synchronous dynamic RAM (SDRAM) with ECC**
• Default: 128-MB Compact Flash; 512-MB DDR SDRAM
• Maximum: 512-MB Compact Flash; 1-GB DDR SDRAM

Product Overview

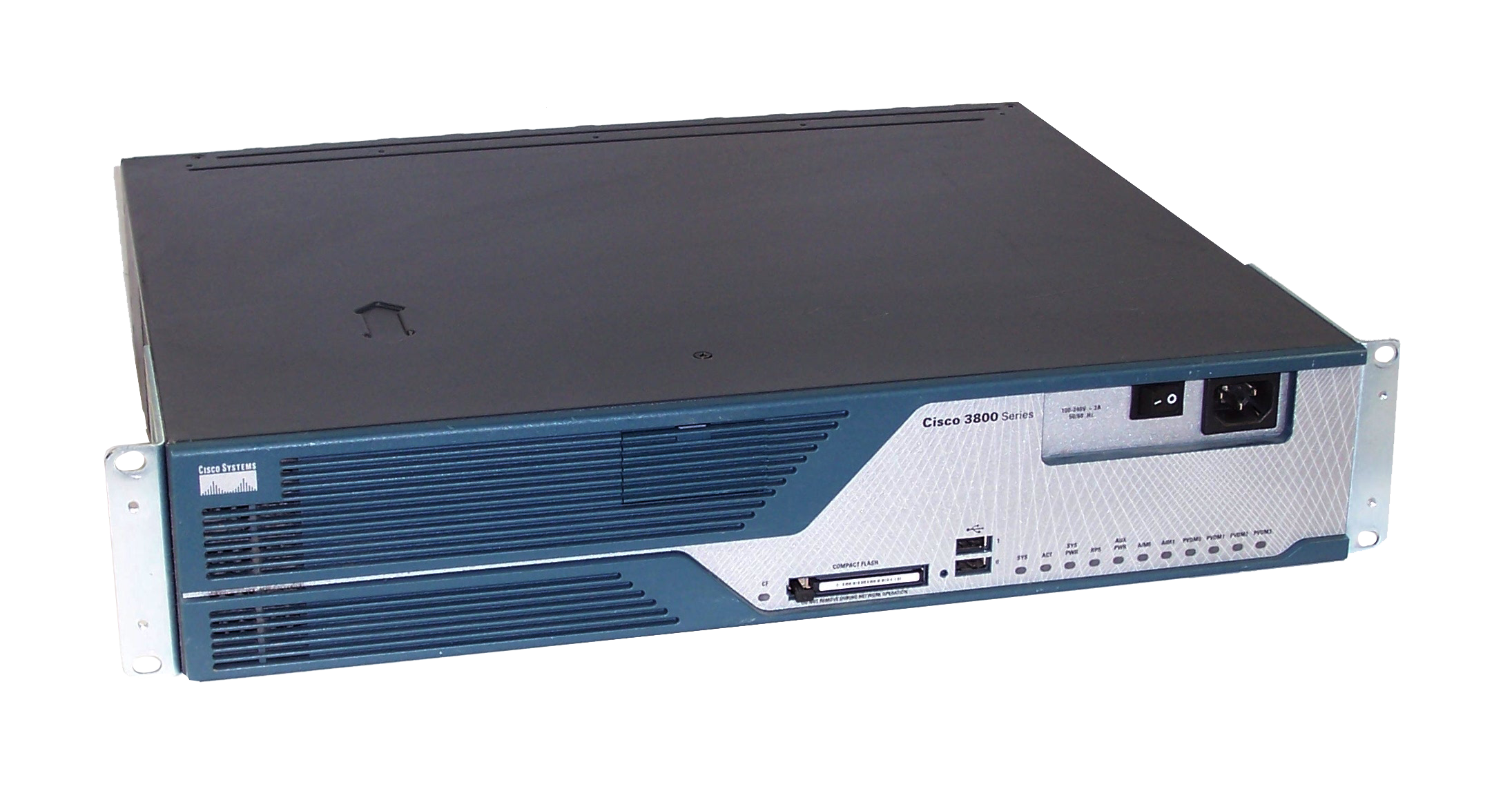

The integrated services routing architecture of the Cisco 3800 Series is designed to embed and integrate security and voice processing with advanced wired and wireless services for rapid deployment of new applications, including application layer functions, intelligent network services, and converged communications. These routers support the bandwidth requirements for multiple Fast Ethernet interfaces per slot, time-division multiplexing (TDM) interconnections, and fully integrated power distribution to modules supporting 802.3af Power over Ethernet (PoE). And at the same time they still support the existing portfolio of modular interfaces, thereby ensuring continued investment protection to accommodate network expansion or changes in technology as new services and applications are deployed. Uninterrupted business operations and business continuity is supported with WAN link redundancy, On-line Insertion and Removal (OIR) and redundant power supply configurations. By integrating the functions of multiple separate devices into a single compact unit, the Cisco 3800 Series Routers dramatically reduce the cost and complexity of managing remote networks.

The Cisco 3800 Series includes the Cisco 3825 and Cisco 3845 Series Routers. These routers integrate a comprehensive set of security features such as firewall, IPSec and Secure Sockets Layer (SSL) VPN, intrusion prevention system (IPS), and voice call processing with advanced wired and wireless services for rapid deployment of new applications that include application layer functions, intelligent network services, and converged communications. The Cisco 3800 Series is available in three optional configurations:

• AC power
• AC power with integrated inline power support
• DC power

In addition, two new models, C3825-NOVPN and C3845-NOVPN, offer all the features supported by the Cisco 3825 and Cisco 3845 Series, with the exception of VPN payload encryption and secure voice features. These two new models provide a limited set of security features, such as firewall, and IPS, compared to the Cisco 3825 and Cisco 3845 Series Routers.
Secure Network Connectivity for Data, Voice, and Video

An important component of the Cisco Self-Defending Network, the Cisco 3800 Series Routers feature the industry’s most comprehensive security services embedded and integrated within the router, offering you a single, resilient platform to rapidly deploy secure networks and applications.

Cisco integrated services routers provide advanced security services and management capabilities such as built-in hardware encryption acceleration, IP Security (IPSec), VPN (Advanced Encryption Standard [AES], Triple Digital Encryption Standard [3DES], DES, and Multiprotocol Label Switching [MPLS]), stateful firewall protection, dynamic intrusion prevention (IPS), and URL filtering support. Cisco IOS ® Software security feature sets enable all of these rich security features, as well as applications such as Cisco Network Admission Control (NAC), Dynamic Multipoint VPN (DMVPN), and Voice and Video Enabled VPN (H-VSEC).
For ease of management and configuration, the Cisco 3800 Series also features the intuitive, web-based Cisco Router and Security Device Manager (SDM) and Cisco Configuration Professional For secure services management, every Cisco integrated services router supports Secure Shell Protocol Version 2 (SSHv2) and Simple Network Management Protocol Version 3 (SNMPv3) to encrypt the management session.
