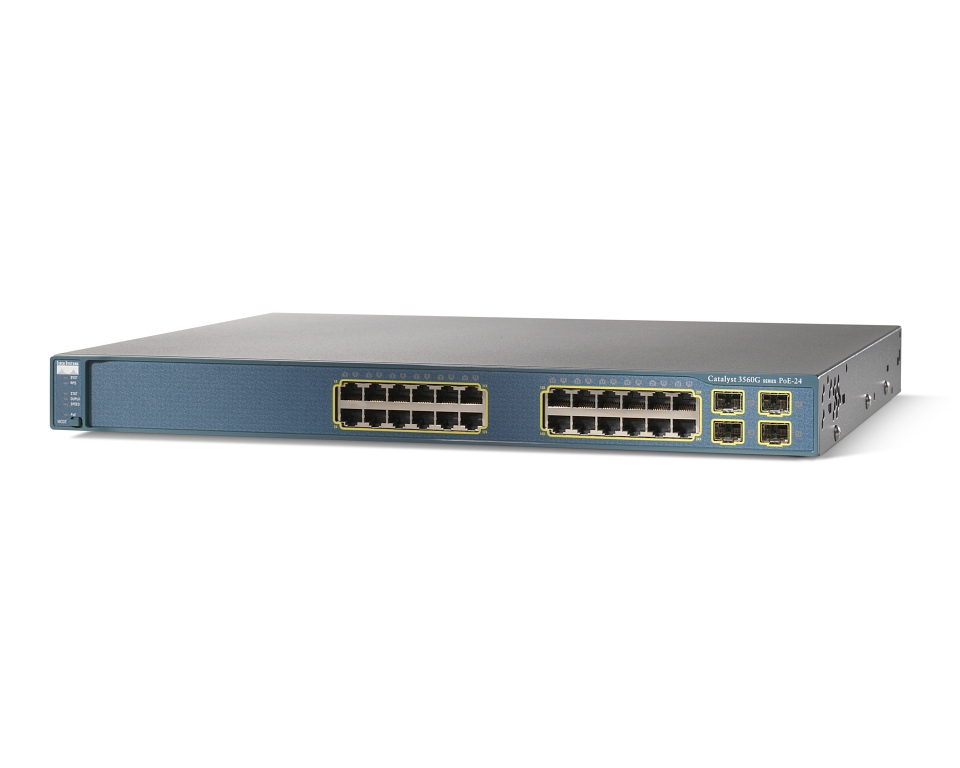

Cisco Switch PN WS-C3560G-24PS-S

$3,059.00

Cisco Swtich PN: WS-C3560G-24PS-S

Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

Product Description

Cisco Switch PN WS-C3560G-24PS-S

Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.
3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building management systems, and remote video kiosks.

– 24 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit Ethernet ports
– 1RU fixed-configuration, multilayer switch
– Enterprise-class intelligent services delivered to the network edge
– IEEE 802.3af and Cisco prestandard
– IP Base software feature set (IPB)

Important Information

We are not only looking to sell you only one time we look to build long business relation with you.

Warranty & Support

We offer manufacture warranty plus our ICT warranty.

If you need any technical assistant, our expert technicians are always available to help you without any additional cost.

Contact us now and let our team help you.

Specifications
TypeFixed
TopologyEthernet (10/100/1000 Ethernet PortsBaseT)Gigabit Ethernet (SFP)
Maximum Port density24 10/100/1000 Ethernet Ports PoE ports
Uplinks4 SFP ports
Modular/Expansion Slotsn/a
ArchitectureLayer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching, Voice Enabled
Form FactorFixed, Rack Mountable, Standalone/Clustering
Dimensions1.73 x 17.5 x 14.9 in.
DRAM128 MB
High Availability/Resilliency
Hardware RedundancyExternal Redundant Power Supply
High Availability/ResilliencyPVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP
Management
Management featuresSPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management
Scalability
WAN Interface Supportn/a
Throughput38.7 Mpps
Backplane Capacity32 Gbps
Number of VLANs4k, 1024

The Cisco Catalyst
3560 Series is a line of fixed-configuration, enterprise-class switches that
include IEEE 802.
3af and Cisco prestandard Power over Ethernet (PoE) functionality in Fast
Ethernet and Gigabit Ethernet configurations.
The Cisco Catalyst 3560 is an ideal access layer
switch for small enterprise LAN access or branch-office environments, combining both 10/100/1000
and PoE configurations for maximum productivity and investment protection while enabling the
deployment of new applications such as IP telephony, wireless access, video surveillance, building
management systems, and remote video kiosks. Customers can deploy networkwide intelligent
services-such as advanced quality of service (QoS), rate limiting, access control lists (ACLs),
multicast management, and high-performance IP routing-while maintaining the simplicity of
traditional LAN switching. Available for the Cisco Catalyst 3560 Series at no charge, the Cisco
Network Assistant is a centralized management application that simplifies the administration tasks
for Cisco switches, routers, and wireless access points. Cisco Network Assistant provides
configuration wizards that greatly simplify the implementation of converged networks and intelligent
network services.
The Cisco Catalyst 3560 is part of a larger and more scalable family of Cisco Catalyst switches that
includes the Cisco Catalyst 3560-E Series switches, the Cisco Catalyst 3750 and 3750-E Series
switches with Cisco StackWise? technology, and the Cisco Catalyst 4500 and Catalyst 6500
modular switches.
United by Cisco IOS Software, the entire family offers industry-leading
availability, integrated security, optimized delivery, and manageability.

The Cisco Catalyst 3560 Series comprises the following switches :
Cisco Catalyst 3560 Switches
– Cisco Catalyst 3560-8PC: 8 Ethernet 10/100 ports with PoE and 1 dual-purpose
10/100/1000 and SFP port; compact form factor with no fan
– Cisco Catalyst 3560-12PC: 12 Ethernet 10/100 ports with PoE and 1 dual-purpose
10/100/1000 and SFP port; compact form factor with no fan
– Cisco Catalyst 3560-24TS: 24 Ethernet 10/100 ports and 2 Small Form-Factor Pluggable
(SFP)-based Gigabit Ethernet ports; 1 rack unit (RU)
– Cisco Catalyst 3560-48TS: 48 Ethernet 10/100 ports and 4 SFP-based Gigabit Ethernet
ports; 1RU
– Cisco Catalyst 3560-24PS: 24 Ethernet 10/100 ports with PoE and 2 SFP-based Gigabit
Ethernet ports; 1 RU
– Cisco Catalyst 3560-48PS: 48 Ethernet 10/100 ports with PoE and 4 SFP-based Gigabit
Ethernet ports; 1RU
– Cisco Catalyst 3560G-24TS: 24 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit
Ethernet ports; 1RU
– Cisco Catalyst 3560G-48TS: 48 Ethernet 10/100/1000 ports and 4 SFP-based Gigabit
Ethernet ports; 1RU
– Cisco Catalyst 3560G-24PS: 24 Ethernet 10/100/1000 ports with PoE and 4 SFP-based
Gigabit Ethernet ports; 1RU
– Cisco Catalyst 3560G-48PS: 48 Ethernet 10/100/1000 ports with PoE and 4 SFP-based
Gigabit Ethernet ports; 1RU
