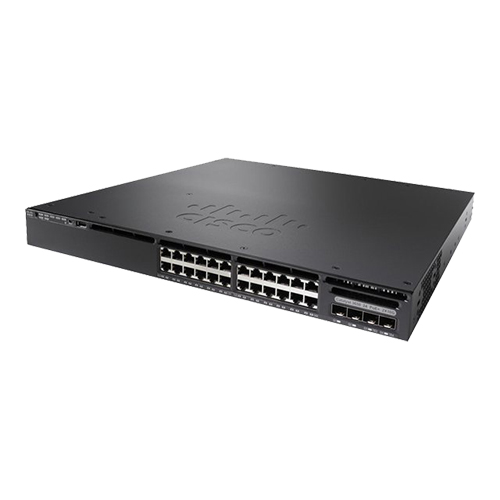

Cisco Switch PN WS-C3650-24PD-S

Original price was: $6,600.00.Current price is: $2,495.00.

Cisco Switch PN: WS-C3650-24PD-S

The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform.

[fusion_button link=”https://www.ict-hardware.com/rfq/” color=”blue” size=”small” target=”_self” title=”” gradient_colors=”,” gradient_hover_colors=”,” border_width=”1px” border_color=”” text_color=”” shadow=”yes” animation_type=”fade” animation_direction=”down” animation_speed=”0.1″]Free Quote[/fusion_button]

SKU: CI-06-3560 Category: Tags: , , , , , , , , , , , , , , , ,

Product Description

Cisco Switch PN WS-C3650-24PD-S

The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform.
The Cisco Catalyst 3650 is built on the advanced Cisco StackWise -160, and takes advantage of the new Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, applicationOPTIMIZATION, and superior resiliency.
The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), and offer modular and field-replaceable redundant fans and power supplies.
They can help you increase wireless productivity and reduce your TCO.

Important Information

We are not only looking to sell you only one time we look to build long business relation with you.

Warranty & Support

We offer manufacture warranty plus our ICT warranty.

If you need any technical assistant, our expert technicians are always available to help you without any additional cost.

Contact us now and let our team help you.

Management features
Switch layerL3
Web-based managementYes
Quality of Service (QoS) supportYes
Switch typeManaged
Multicast supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP ports quantity2
SFP+ ports quantity2
Networking
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
10G supportYes
Rate limitingYes
DHCP serverYes
IGMP snoopingYes
VLAN supportYes
Auto MDI/MDI-XYes
Link aggregationYes
Spanning tree protocolYes
IP routingYes
Data transmission
Switching capacity88  Gbit/s
MAC address table32000  entries
Number of VLANs4000
Jumbo frames supportYes
Security
SSH/SSL supportYes
Access Control List (ACL)Yes
Design
Rack mountingYes
Colour of productBlack
Form factor1U
LED indicatorsYes
SafetyUL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, GOST, NOM
Performance
StackableYes
Memory typeDRAM
Flash memory2000  MB
Internal memory4096  MB
Power
AC input voltage100-240  V
AC input frequency50/60  Hz
Power consumption (typical)67.75  W
Redundant power supply (RPS) supportYes
Number of power supply units1
Power over Ethernet (PoE)
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE) supportYes
Total Power over Ethernet (PoE) budget390  W
Operational conditions
Operating temperature (T-T)-5 - 50  °C
Storage temperature (T-T)-40 - 70  °C
Operating relative humidity (H-H)5 - 96  %
Operating altitude0 - 1500  m
Non-operating altitude0 - 5000  m
Weight & dimensions
Width445  mm
Depth448  mm
Height44  mm
Weight7260  g
Other features
Bandwidth160  Gbit/s

Product Overview
– Integrated wireless controller capability with:
– Up to 40G of wireless capacity per switch (48-port models)
– Support for up to 25 access points and 1000 wireless clients on each switching entity (switch or stack)
– 24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
– Three fixed-uplink models with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports
– Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
– Dual redundant, modular power supplies and three modular fans providing redundancy
– Full IEEE 802.3at (PoE+) with 30 W power on all ports in 1 rack unit (RU) form factor
– Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
– Single universal Cisco IOS Software image across all license levels, providing an easy upgrade path for software features
– Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support

Dual Redundant Modular Power Supplies
The Cisco Catalyst 3650 Series Switches support dual redundant power supplies . The switch ships with one power supply by default, and the second power supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, it should always be in power supply bay 1. The switch also ships with three field-replaceable fans.

The Cisco Catalyst 3650 Series Switches support both PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at standard), which provide up to 30 W of power per port. PoE removes the need for wall power to each PoE-enabled device and eliminates the cost for additional electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.

The Cisco Catalyst 3650 Series Switches can provide a lower TCO for deployments that incorporate Cisco IP phones, Cisco Aironet wireless LAN (WLAN) access points, or any IEEE 802.3at-compliant end device. Table 5 shows the power supply combinations required for different PoE needs.
